UV printer mari ai shaloi, jep joi yu ra ai ahkyak dik ai arung arai langai gaw, printhead re. Dai gaw droplet byin pru wa ai, sumla a hkrang bung sumla, ink a hkrang masa, dip shapraw mai ai galu kaba ai lam, byin mai ai bungli galaw lu ai atsam, gram lajang ra ai lam ni, galai shai na matu ra ai gumhpraw ni hpe shadut ya ai.
Lawan ai mahtai:UV printer printhead hpe lata la na matu, lam manga hpe shawng jep yu u: UV ink hte hkan sa ai lam nga ai kun, ra ai detail hte ink coverage hpe shapraw lu ai kun, hkum tsup ai printer gaw na a galaw shapraw ai yaw shada lam hpe hkan sa lu ai kun, na a arai ni a hkrang hte tsaw ai n bung ai lam hpe hkam sharang lu ai kun, galai shai na matu madi shadaw ai arung arai ni hte tech ni nga ai kun.
Printhead hpe langai hkrai sha nga ai daw langai hku nna galoi mung n mai jep joi ai. Ink hpe galaw ai, drive waveform, negative-pressure hpe hkang ai, nsam-channel hpe ap ya ai, mawdaw htaw ai lam a hkrak ai lam, RIP settings, UV curing, gram lajang ai hkrang, hte operator galaw ai lam ni yawng gaw hpang jahtum na mahtai hpe hkra machyi shangun ai.
Ndai laika buk hta dai galai shai ai lam ni hpe gara hku shingdaw nna, printhead a hkrang masa ni hpe tatut mari na dawdan lam de gara hku galai shai na hpe sang lang dan da ai. Mari ai ni shingdaw ai hkum tsup aiUV flatbed laika ka ai jak a hkrang shapraw ai lamn bung ai jak size hte printhead lata la mai ai lam ni hpe jep joi na matu framework langai hpe lang mai ai.
UV Printer Printhead gaw hpa hpe hkang lu ai kun?
Printhead langai hta, hkang da ai ink ntsin ni hpe shapraw ya ai nozzle ni law law nga ai. Printer gaw sumla data ni hpe baw de sa ya nna, langai hkrai a nozzle ni gaw, nsam rawng ai sumla ni, hpraw ai npu npawt ni, asan sha nga ai varnish layer ni (sh) sharawt tawn da ai texture ni hpe galaw na matu, masat da ai aten ni hta wan shatu ya ai.
Printhead gaw hkrak hkra machyi shangun ai:
- Native nozzle dawdan ai lam
- Lu mai ai hka htung n-gun
- Droplet tawn da ai shara n galai shai ai
- Carriage pass langai hta akyu rawng ai dip shapraw ai dam lada ai
- Grau law ai gap ai lang lang
- Madi shadaw ai ntsin n-gun hte ink amyu ni
- Ink channel (sh) nsam ni a jahpan
- Binary, law law - hkrat sum ai, shing nrai grayscale galaw ai lam
- Hka lum ai (sh) nozzle-madang bai shinggrup ai lam nga ai
Dai gaw, ngut sai laika ka ai atsam hpe shi hkrai shi dawdan ya ai n re. Carriage shamu shamawt ai lam, encoder a hkrak ai lam, bawnu hpe hkrak hkra galaw ai lam, fixture a ngang grin ai lam, print gap, pass jahpan, screening, nsam hpe hkang ai lam, ntsa lam hpe hkyen lajang ai lam, UV curing ni gaw dai hte maren sha ahkyak nga ai.
Ndai lam a majaw, printer lahkawng hpe brand mying langai sha lang ai printhead hte bang da ai shaloi, sumla a quality, lawan ai, gram lajang ai lam ni hta n bung ai.
UV Printer Ni Hpa Majaw Piezoelectric Printer Hpe Lang Ai Kun?
Piezoelectric drop-on-demand hpaji hpe bungli galaw ai UV inkjet ladat ni hta grai lang ma ai. Aten masat da ai wan n-gun signal gaw piezoelectric actuator hpe hkra machyi shangun nna, ink nta kata na n-gun hpe galai shai kau ya nna, nozzle hku nna hka htung langai hpe shapraw kau ya ai.
Thermal inkjet gaw ink hpe katsi shangun ai hku nna nbung n-gun hpe shabyin ya ai. Piezoelectric bungli galaw ai shaloi, droplet byin pru wa ai shaloi, ink hpe n-gun n rawng hkra galaw ra ai majaw, baw, waveform, temperature, ink system ni hpe hkrak hkrak shadawn shadang tawn da ai shaloi, n-gun kaba ai industrial fluids ni a matu htuk manu nga ai.
Epson a tara shang PrecisionCore hpe maram yu ain-gun n rawng ai-film piezo hpaji masa hpe -htuk manu ai MEMS galaw shapraw ai lam hte kayau kaya galaw ai platform langai hpe tsun dan ai. Ricoh hte Konica Minolta ni mung, lata la ai UV-htap htuk ai hkrang ni hpe lawm ai, bungli galaw ai ntsin ni a matu piezoelectric baw ni hpe galaw shapraw ai.
Raitim, mari ai wa a matu gaw, "piezoelectric" ngu ai gaw, npawt nhpang sha rai nga ai. Grau akyu rawng ai ga san gaw, hkrak tup ai printhead hte ink-delivery configuration hpe rau jawm jep yu sai kun ngu ai lam rai nga ai.
UV Printer Printhead hpe lata ai shaloi shingdaw yu ra ai lam 9

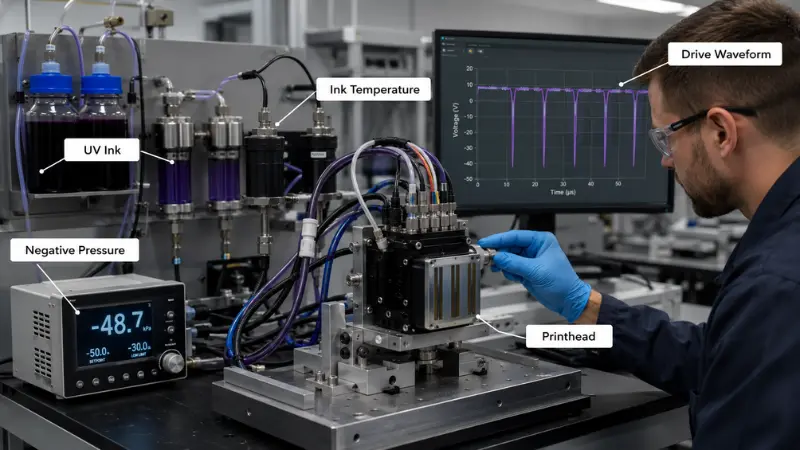

1. Printhead hpe UV Ink hte jep joi yu sai kun?
UV ink ni gaw n bung ai, n-gun n-gun, n-gun n-gun, n-gun n-gun, n-gun n-gun, bungli galaw ai nbung n-gun, chemical compatibility ni hta shai hkat nga ai. Process nsam, hpraw ai ink, asan sha nga ai varnish, primer ni hpe n bung ai hku galaw ra ai.
UV-htap htuk ai ngu tsun da ai printhead gaw UV ink shagu hte shi hkrai shi htuk manu ai n re. Hkum tsup ai hka htung hpe ndai lam ni hpe kahkyin gumdin ai hku nna jep joi ra na re:
- Tengman ai print baw hkrang
- Ink galaw ai hte batch hpe hkang ai
- Bungli galaw ai hte jetting katsi ai
- N kaja ai-dip sha ai lam
- Hka htung, hka htung, damper, hte pat da ai arung arai ni
- Drive n-gun hte n-gun atsam
- San seng ai hte hka shin ai ntsin
- UV pyengdin a n-gun hte tsi lajang ai lam
Waveform ngu ai gaw, piezoelectric actuator hpe shamu shamawt na matu lang ai aten masat da ai n-gun atsam hpe tsun ai re. Dai gaw hka htung byin pru wa ai, lawan ai, n-gup daw -off, satellite hka htung byin pru wa ai lam ni hpe hkra machyi shangun ai. Ink viscosity (sh) ntsa n-gun galai shai ai shaloi, jetting hpe ngang grin hkra galaw na matu, kaga waveform (sh) nbung katsi ai shara hpe ra na re.
Negative pressure gaw, n-gup hpaw ai shara kaw na ink meniscus hpe n-gun jaw ya ai. N htap htuk ai shara gaw, nozzle hkrap ai, ink kawsi hpang gara ai, nbung shang ai, shing nrai, kalang lang nozzle n nga mat ai hpe byin shangun chye ai. Printhead model langai sha gaw n ngang grin ai n-gun-hkang ai ladat hpe n mai sharai la ai.
Third-party ink hpe n lang shi yang, galai shai ai lam hpe hka shin ra ai, waveform hpe galai shai ra ai, nbung katsi ai hpe nnan gram lajang ra ai, shing nrai, garan gachyan ai lam n bung ai hpe jep yu u.
2. Droplet Size kaji ai gaw, Print Quality grau kaja ai ngu ai lachyum kun?
Kaga galai shai ai lam ni hpe hkang ai shaloi, kaji ai hka htung ni gaw, laika man kaja, nsen nsam htoi tu ai shara ni, sumla hkrung a hkrang sumla ni hpe grau kaja hkra galaw ya lu ai. Labau kaba ai hka htung ni gaw, nsam hpraw ai shara ni, hpraw ai npu npawt ni, varnish (sh) raised effects ni a matu grau law ai hka hpe bang ya lu ai.
Droplet size hpe ndai hte rau hti ra ai:
- Jetting hkrak ai lam
- Native nozzle dawdan ai lam
- Grayscale madang ni
- RIP jep joi ai lam
- Pass jahpan
- Substrate hpe hka ja ai akyang lailen
- Baw hpe hkrang shapraw ai
- Teng sha galaw shapraw ai lawan ai
Multi-drop (sh) variable-drop hpe hkang ai gaw baw langai hpe n bung ai akyu rawng ai hka htung nsen ni hpe shabyin ya lu ai. Kaji ai drop ni hpe highlight hte detailed shara ni hta lang mai nna, kaba ai drop ni gaw grau n-gun ja ai coverage hpe jaw ya ai. Dacen a sumtang hpe 2019 ning hta ka da ai.galai shai ai ink-drop hpaji masaUV dip shapraw ai hta grayscale hpe gara hku hkang ai lam hpe jat nna tsun dan ai.
Theoretical grayscale madang ni gaw, laika ka da ai chyam dinglik ai lam a malai n re. Neutral gradients, hkum hkrang nsam, shingdu de ka da ai laika kaji, ngang kang ai hpring ai lam ni, hte hpraw-to-hpang nsam ni hpe tengman ai arung arai ntsa hta ka da ai hpe jep yu u.
3. Nozzle hti ai, print galaw ai galu kaba ai, gap ai frequency ni gaw Speed hpe gara hku hkra machyi shangun ai kun?
Nozzle count (sh) firing frequency law ai gaw, grau law ai bungli galaw ai lam hpe madi shadaw ya lu ai, raitim, dai nambat lahkawng yan gaw, printer a lawan ai lam hpe tup hkrak n tsun dan ai.
Hpaga galaw shapraw ai lam hta mung madung nga ai:
- Pass langai hta akyu rawng ai print galu kaba ai lam
- Install galaw da ai baw jahpan
- Baw langai hta nsam ap ya ai
- Carriage lawan ai hte hkrun lam tsan ai
- Pass jahpan
- Lam lahkawng hku shadawn ai
- RIP data hpe galaw ai
- Ink-shalai ya lu ai atsam
- UV tsi lajang ai atsam
- Hpraw hte varnish layer ra ai
Printer langai hta lawan ai printhead nga tim, mawdaw, data lam, ink jaw ai lam (sh) curing system ni gaw dai zawn sha galaw lu ai rai yang, loi loi hte naw galaw nga ai.
Advertise galaw da ai lawan ai lam ni hpe shingdaw ai shaloi, supplier hpe ndai hku tsun shangun u:
- Resolution hte pass jahpan
- Dip shapraw ai ladat
- Dip shapraw ai shara hte sumla hpe shinggrup da ai
- CMYK, CMYK hte hpraw, shing nrai CMYK hte hpraw hte varnish
- Langai maga (sh) maga lahkawng hku dip shapraw ai
- Hka htaw ai, jahkrat ai, fixture galai shai ai lam ni lawm ai kun .
Dacen a lam matsun hpe .UV flatbed printer a lawan ai hpe sawn la aigalaw shapraw ai ladat ni hpe shingdaw ai shaloi, npawt nhpang hku nna jai lang mai ai. Company aDG-2513 Epson I3200 hkrang shapraw ai lambai nna, garan ginhka ai draft, galaw shapraw ai lam, hte -resolution tsaw ai ladat ni hpe mung ka da ai, hpa majaw n-gun kaba dik htum-speed jahpan langai sha n hkum tsup ai hpe madi madun ai.
4. Ink Channel ni hpe gara hku garan jaw ai kun?
Printhead ni a jahpan gaw, nsam hkrang hpe shi hkrai shi n tsun dan lu ai. Lahkawng-baw printer gaw baw langai hpe CMYK de, langai hpe hpraw de ap ya mai ai. Masum-baw ai masa gaw CMYK, hpraw, hte varnish hpe garan ginhka lu na re. Kaga system ni gaw bawnu langai a kata kaw na channel ni hku nna nsam law law hpe garan jaw ai.
Channel lit jaw ai lam gaw:
- Nsam- kaw nna-nsam hpe hkrang shapraw ai
- Hpraw- kaw nna- nsam masat masa galaw ai
- Ink layer law law hte galaw shapraw lu ai atsam
- N kaja ai bawnu hpe galai na matu manu jahpu
- Hten za mat ai channel langai gaw nsam langai (sh) nsam law law hpe hkra machyi shangun ai kun
- Hpang de nhtoi htoi ai nsam, primer, shing nrai varnish ni hpe bang na matu mai byin ai
Ga shadawn, multi-channel baw langai hpe nsam mali jaw ai gaw, leng n-gun hte shawng nnan na hardware manu hpe shayawm ya lu ai. Process color, hpraw, hte varnish ni a matu garan tawn da ai baw ni gaw, galaw shapraw ai lam hta grau nna htuk manu ai lam ni hpe jaw ya lu ai, raitim, shanhte gaw alignment, gram lajang ai lam, galai shai ai lam ni hpe myit yu ra ai.
Hkum hkrang baw, channel, nsam, ink shang ai shara, hka hkawm ai lam shagu hpe madun da ai sumla hpe hpyi shawn u. Machine ni hpe n-gun jaw da ai bawnu ni a headline jahpan hte sha hkum shingdaw.
5. System gaw Tengman ai White Ink Circulation hpe jaw ya ai kun?
Hpraw ai UV ink hta ntsin n shamu n shamawt ai sha nga yang, n-gun ja ai nsam (dense pigment) lawm ai. Hpraw ai ink hpe hparan ai ladat hta madang amyu myu lawm mai ai:
- Madung ink tank kata kaw shamu shamawt ai lam
- Supply hte bai nhtang wa ai hka htung hku nna hka hkawm ai lam
- Lahkawng ngu na tank (sh) damper system hku nna hka hkawm ai lam
- Nozzles makau na printhead kata kaw bai shinggrup ai lam
- Hkang lu ai katsi ai hte n kaja ai n-gun
- Tinang hkrai gram lajang ai hte aten masat da ai hpraw dip shapraw ai
Ndai magam bungli ni gaw n bung ai. Tank agitation gaw bulk ink hpe kayau kaya galaw ya ai, raitim ink gaw line ting hku (sh) nozzle plate a hpang de hkawm sa nga ai hpe sakse n madun ai.
Ricoh a sang lang dan ai lam hta .Nozzle langai hkrai a makau kaw ink bai shinggrup ai lammatut manoi lwi ai gaw, hpraw hte magri ink ni hta lang ai pigment ni lawm ai, high-specific-gravity particles ni a hkyet mat ai hpe shayawm ya lu nna, hka lim ai hpe pat shingdang ya lu ai ngu tsun da ai.
Dacen mung hpa majaw an .ink hkawm sa ai lam hte seng ai lam nihte garan nna lam matsun langai mi hpe .UV printer hpraw ai ink hpe chyam yu ai.
Clear varnish hte primer hpe hpraw ai ink zawn hka lim ai atsam nga ai zawn n mai galaw ai. Shanhte a madung hkrit tsang hpa ni gaw, viscosity galai shai ai lam, nbung hpe rim da ai lam, nozzle grup yin hkyet mat ai lam, awu asin byin ai lam, seals (sh) tubing ni hte n htap htuk ai lam ni lawm chye ai. Dai jak hta "circulation nga ai" ngu ai ga si hpe hkap la na malai, laksan ntsin langai hpra hpe gara hku hparan ai hpe san yu u.

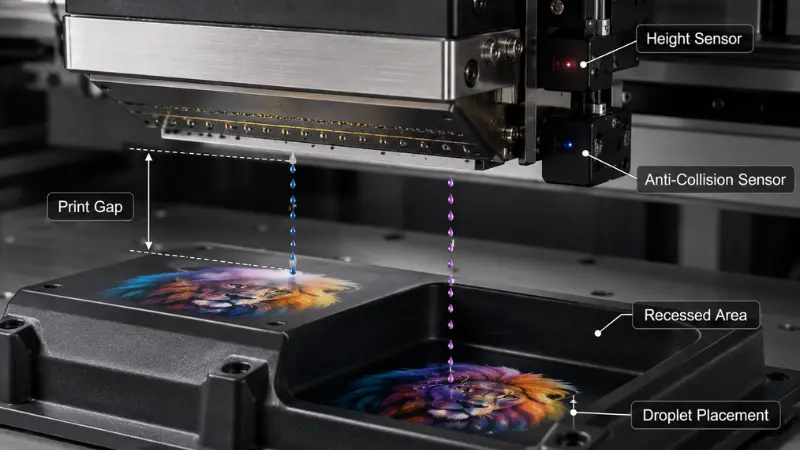

6. Printhead gaw ra ai Print Gap hpe hparan ya lu na kun?
Print gap ngu ai gaw nozzle plate hte product ntsa lapran na tsan ai shara re. Kadun ai, hkang lu ai gap gaw, madung hku nna, hkrak ai droplet hpe tawn da na matu loi ai.
Gap hkat ai lam law wa ai hte maren, hka htung ni gaw nbung hku nna grau tsan ai de sa wa ai. Nbung lwi ai, n shamu n shamawt ai wan n-gun, hka htung n-gun n bung ai, satellite hka htung, leng shamu shamawt ai lam ni gaw landing-position error hpe grau law hkra galaw ya lu ai. Dai kaw na pru wa ai mahtai gaw, n-gup magap n-gun n rawng ai, n-gun n rawng ai, n-gun n rawng ai, nsam hpe shut ai hku ka da ai (sh) n-gun n rawng ai zawn rai chye ai.
Nkau printhead ni hpe gaw grau dam lada ai gap ni a matu laksan galaw da ai. Ricoh tsun ai hta, .TH6310F hpaga lam hte seng ai dip shapraw ai bawn-gun rawng ai nozzle lajang ai lam hte bai shinggrup ai ladat hpe jai lang nna, Ricoh tsun da ai masa lam ni a npu e 4 mm du hkra gap ai shara hta hkrak hkrak tawn da na matu galaw da ai.
Dai masat da ai lam hpe UV printer shagu a matu universal maximum hku n mai galai shai kau ai. Ink, waveform, mawdaw a lawan ai, static control, product hkrang, jak hte hpawng de ai lam ni gaw, mahtai hpe naw hkra machyi shangun nga ai.
Recessed products (sh) tsaw ai n bung ai ntsa lam ni a matu, yaw shada lam-gap da ai hpe bai maram yu utsaw ai - hkrat ai UV printer hkrang shapraw ai lam. Bai nna, jak hta tsaw ai hpe hkrak hkrak shadawn ai, htap htuk ai arung arai ni, hte .print baw hpe ninghkap ai -hkap gap hkat ai ladat.
Galoi mung, tengman ai arung arai hpe shi a tsaw dik htum shai hkat ai shara hta chyam yu u. Artificial hku sharawt tawn da ai leng hte dip shapraw da ai flat panel gaw, n-gun n rawng ai, shinggrup da ai (sh) n tara ai daw hte seng ai hkrit tsang hpa yawng hpe n shapraw ya ai.
7. Printhead hpe gram lajang na matu hte galai na matu gara hku manu jahpu jaw ra na kun?
Galai shai na baw langai mari ai manu gaw, printhead- hte seng ai manu a daw langai sha re.
Akyu rawng ai shaning shagu na jahpan langai gaw:
Shaning shagu na printhead- hte seng ai manu jahpu=galai ai baw + jasan jaseng ai ntsin + dampers, filters, caps, hte wipers + gram lajang ai bungli + service sa du gawan ai + galaw shapraw ai aten hpe sawn la ai.
Lahta na lam ni hpe shingdaw yu u.
- Ya aten hta galai na manu
- Normal htaw sa ai aten
- Dai baw hpe buga ginra (sh) ginra stock hta tawn da ai kun .
- San seng ai-hka lang ai
- Shani shagu hte bat shagu gram lajang ai aten
- Hpun nba, kashin kau, damper, hte filter hpe lang lang galai ai
- Install galaw ngut ai hpang jak hte electronic masat masa galaw ai
- Remote madi shadaw ai lam gaw ram sai kun
- Bawnu hkra ai, ink galai ai, n tara ai hku jasan jaseng ai a matu Warranty n lawm ai
Fixed printhead prat hpe bungli galaw ai masa n nga ai sha kam mai ai hku n mai sawn la ai. Ink hte htuk manu ai lam, gram lajang ai lam, nhprang wan, hka lim ai lam, bawnu hkra ai lam, n shamu n shamawt ai wan n-gun, UV n-gun, bungli n galaw ai aten, pat kau ai lam ni yawng gaw, magam bungli prat hpe hkra machyi shangun ai.
Tatut galaw mai ai hku yu lajang ra ai lam ni a matu, 2019 hta Dacen a lam matsun hpe bai maram yu u.UV printer laika ka baw hpe gram lajang ai lamHteprint baw hpe jasan jaseng ai.
8. Spare Parts, Calibration, Hpaji lam ni hpe madi shadaw ya ai lam ni nga ai kun?
Printhead hpe lata ai gaw- aten galu magam bungli ra ai lam hpe shabyin ya ai. Supplier wa jaw ya lu ai kun ngu ai hpe jep yu u:
- Tengman ai galai shai ai hkrang hte bai gram lajang ai lam
- Cable, damper, filter, hte seal ni hpe sharai la u
- Waveform hte firmware hpe madi shadaw ya ai
- Mechanical hpe bang na matu matsun
- Baw-voltage hte hkrang shapraw ai ladat ni
- Nozzle-chyam dinglik lachyum shaleng ai lam
- Tsaw ai kaw na jep chyoi ai
- Ginra engineer ni (sh) sharin hkam la sai magam bungli manang ni
Machine langai hta nozzle n nga ai (sh) n grin ai jetting byin wa ai shaloi, galai shai ai gaw shawng nnan na automatic mahtai n rai ging ai. Ink kawsi hpang gara ai, nbung hpe shinggrup da ai, pressure n ngang kang ai, cap hpe pat da ai, awu asin re ai wiper ni, hten za ai damper ni, pat da ai filter ni gaw dai zawn re ai kumla ni hpe shabyin ya lu ai.
Dacen a lam matsun hpe .UV flatbed laika ka ai baw hpe manghkang hparan aibawnu langai hpe tara n jeyang shi yang, ngut kre ra ai jep joi ai lam law law hpe shinggrup da ai.
9. Configuration gaw tengman ai galaw shapraw ai chyam dinglik ai lam hpe lai sai kun?
Sample langai hpe mari ngut ai hpang lang na zawn re ai arung arai, ink layers, fixture, print gap, galaw shapraw ai ladat ni hte maren sha galaw ra ai.
Kaja ai-mu lu ai sumla hpe kalang mi slow exhibition mode hta dip shapraw ai gaw, galaw shapraw ai lam hta ngang grin ai lam hpe n gawgap ya ai. Chyam dinglik ai lam gaw, pru wa ai quality hte bai galaw mai ai lam lahkawng yan hpe madi madun ra ai.
N law htum, ka matsing da u:
- Printer hkrang hte hkrak ai print baw hkrang
- Install galaw da ai baw jahpan hte channel lit jaw ai
- Ink hkrang shapraw ai lam
- Arung arai hte ntsa lam hkyen lajang ai lam
- Print gap
- Resolution hte pass jahpan
- Lam langai sha (sh) lam lahkawng hku hkawm sa ai ladat
- Teng sha dip shapraw ai shara
- Dip shapraw ai aten
- Chyam dinglik ai shawng hte ngut ai hpang na nozzle a masa
Epson I3200 hte Ricoh G5 (sh) G6: Mari ai ni hpa hpe shingdaw ra ai kun?
Masha law law gaw "Epson I3200 hte Ricoh G5" shing nrai "Epson I3200 hte Ricoh G6" ngu ai hpe tam ma ai. Brand (sh) prat langai a mying langai sha gaw, nsen kaja ai hku shingdaw lu na matu, ra ai shiga ni hpe n jaw lu ai.
Hpa majaw nga yang, brand langai sha kata na baw ni gaw, nozzle jahpan, native resolution, print galu kaba ai lam, droplet range, madi shadaw ai viscosity, katsi ai lam, bai shinggrup ai lam, nsam channel ni hta shai hkat chye ai majaw re.
Lahta na table hta model-level shingdaw ai lam hpa majaw ahkyak ai hpe madun da ai. Ranking n re, printer design shagu hta model ni gaw direct galai shai ai lam n re.
| Dip shapraw ai baw ga shadawn | Laksan lata la ai tara shang masat masa ni | Mari ai wa hpa hpe jep joi ging ai |
|---|---|---|
| Epson I3200(8){2}}S1HD | 3,200 nozzles, 33.8 mm hkrak ai laika ka ai galu kaba ai, ink channel 8 du hkra, UV-htap htuk ai ntsin hpan, galai shai ai hka htung n-gun, kata na n-gun n rawng ai (sh) bawnu-madang bai n-gun n rawng ai hpe official data sheet hta ka da ai. | Compact law law-channel layout, kaja ai-droplet sumla a hkamja lam, channel hpe lit jaw ai lam, shinggan de na ink hkawm sa ai lam, ink a n-gun hpe hkang ai lam, hte jak a bungli hpe hkum tsup hkra galaw lu ai lam ni hpe galaw ai. bai maram yu utara shang Epson I3200(8) jahpan laika. |
| Ricoh MH5420 (sh) MH5440 | 1,280 nozzles, 54.1 mm print galu ai, lahkawng- (sh) mali-nsam hkrang, hpawng de da ai n-gun dat, UV-htap htuk ai ink hpan, ink hta hkan nna 7 kaw nna 35 pL grayscale range, hte nsam{{8}row hte maren galai shai ai resolution. | High-viscosity ink hpe lang ai lam, nsam hpe garan jaw ai lam, katsi ai hku galaw ai lam, grau dam lada ai swath, actual pass count, galai na matu manu jahpu, hte hkum tsup ai printer hpe system kata na kaga shara ni hta bai shinggrup ra ai kun ngu ai lam ni hpe tsun dan ai. hpe yu uRicoh MH5420/5440 laika man. |
| Rico TH6310F | 1,600 nozzles, 66.7 mm print galaw ai galu kaba ai, 600 npi, UV-htuk manu ai ink hpan, ink hpe bai shinggrup ai lam, hte model-laksan gap ai atsam kaba nga ai. | -gap bungli galaw ai lam tsaw ai, bai shinggrup ra ai lam ni, waveform hpe hpawng de ai lam, single-pass hte multi-pass lang ai lam ni, shi a tara shang chyam dinglik masa ni gaw, tang madun da ai UV printer application hte htap htuk ai kun ngu ai lam ni hpe tsun dan ai. |
| Konica Minolta KM1024aLHG-RC | 1,024 nozzle, 72 mm print galu ai, 360 npi, nozzle hpe bai shinggrup ai, kata na katsi ai, UV-htap htuk ai ink hpan, hte law law-drop volume kaba ni hpe lang ai. | Hka kaba ai n-gun rawng ai, hpraw ai (sh) laksan ink hpe n-gun rawng ai, ra ai detail, grayscale mode, galaw ai lawan ai, printer a yaw shada ai bungli a matu htap htuk ai. hpe san yu u.tara shang KM1024a RC masat masa ni. |
Epson I3200 hpe madung tawn ai Configuration hpe galoi aten hta jep joi yu na matu manu dan na kun?
Epson I3200 hpe madung tawn ai system gaw, bawnu hpe n-gun n rawng ai hku galaw na, ink channel law law, hka lim ai hpe atsawm sha hkang lu na, hkrang sumla ni hpe hkrak hkrak galaw lu na, shawng nnan na hardware manu hpe shayawm lu na matu ahkyak ai shaloi myit yu ging ai rai na re.
Dai dawdan ai lam hta shinggan na ink system, ink hpraw hpe hparan ai lam, print gap ai lam, gram lajang ai lam, bang da ai baw jahpan ni hpe naw lawm ra ai. I3200 label gaw CMYK, hpraw, varnish ni hpe gara hku masat da ai, hkum tsup ai jak gaw kade daram lawan ai hku dip shapraw lu ai hpe n tsun dan ai.
Ricoh Industrial-bawnu hkrang shapraw ai lam hpe jep joi yu na matu manu dan ai aten rai na re
Ricoh metal-head configuration gaw, grau dam lada ai print swath, n-gun ja ai -hkum hkrang n-gun, n-gun ja ai ntsin hpe hparan ai lam, ngang kang ai hpaga lam galaw ai lam, shing nrai, laksan multi-drop ra kadawn ai lam ni hpe ahkyak shatai ai shaloi, grau nna jep joi ging ai rai na re.
Ricoh model ni yawng gaw droplet range, nsam atsam, bai shinggrup ai ladat, shing nrai, high-gap atsam n bung ai. "Ricoh G5" shing nrai "Ricoh G6" ngu ai hpe sha tsun da ai ga si hpe, hkrak tup ai model code, hpaji masa hte seng ai jahpan, bawnu jahpan, ink jaw ai lam, galaw shapraw ai chyam dinglik ai lam ni hpe jat bang ra ai.
Hpraw ai Ink (sh) High-Drop Printing a matu gara gaw grau kaja ai kun?
Hpraw ai ink a matu, hkum tsup ai shingjawng lam, n kaja ai-pressure ngang grin ai lam, hka ja ai lam, shingjawng ai lam, hte gram lajang ai hkrang hpe ahkyak shatai nna galaw ra ai. Nozzle-recirculating head gaw hka hpe grau nna ngang grin hkra galaw ya lu ai, raitim, tank hte line hpe hkrak hkra hparan ai lam hpe n galai shai ya lu ai.
-drop law ai hpe dip shapraw na matu, tengman ai arung arai geometry hta jep chyoi da ai droplet tawn da ai hpe ahkyak shatai nna galaw u. Supplier langai gaw, chyam dinglik ai gap kaba dik htum, lang ai sumla hkrung, ink, mawdaw htaw ai alawan ai lam, byin pru wa ai n-gup magap a hkamja lam, hte arung arai law law hta bai galaw mai ai lam ni hpe madun dan ra ai.
Printhead hpe Application hte bung hkra galaw u .
| Shawk shawn ai | Madung ahkyak ai lam ni | Hpyi shawn na sakse |
|---|---|---|
| Phone htinggaw, kumhpa, masat kumla ni hte laika man kaja ni | Kaji ai akyu rawng ai hka htung ni, grayscale hpe hkang lu ai, bawnu hpe hkrak hkrak hkrang shapraw lu ai, ngang grin ai shingnip ni, hte n-gun ja ai nsam ni hpe n-gun jaw lu ai. | Laika kaji, shingdu de ka da ai laika, gradient, sumla hkrung a hkrang sumla, hte shara hpe bai kahtap chyam dinglik ai lam ni hpe galaw ai. |
| Board kaba ni, masat kumla ni, mawn sumli ai panel ni | Dip shapraw ai dam lada ai, n-gup n-ga jahpan, baw jahpan, ngang grin ai ink sa ya ai lam, htaw sa ai atsam, hte tsi lajang ai atsam. | Ra ai ink layers hte sumla hpe shinggrup da ai myit hkrum da ai pass count hta lawan ai hku galaw u. |
| Hpraw ai ink hpe grai law hkra galaw shapraw ai | Tank hpe shinggrup ai lam, line shinggrup ai lam, nozzle-area shinggrup ai lam ra ai shara hta, n kaja ai-pressure hpe hkang ai lam, hte san seng ai lam ni hpe galaw ai lam ni hpe galaw ai. | White opacity, matut manoi dip shapraw ai, galaw ngut ai hpang hte galaw ngut ai hpang nozzle hpe jep yu ai, bai galaw hpang ai akyang lailen ni hpe jep yu ai. |
| Varnish hte sharawt ai nsam | Hkrang n bung ai ntsin hpe n-gun jaw ai, layer hpe n-gun jaw ai, n-gun rawng ai hpe hkang ai, Z-axis hpe hkrak hkrak tawn da ai. | Texture hpe n bung ai hku galaw ai, varnish hpe ka bang ai, jut hpe chye na hkra galaw ai, ra ai layer thickness hta curing galaw ai. |
| Recessed (sh) n bung ai daw ni | Jep chyoi ai print gap, hka lim ai lam, n shamu n shamawt ai hpe hkang ai, tsaw ai hpe shadawn ai, n-gun rawng ai hkrang, hte hkrat sum ai kaw na makawp maga ai lam ni. | Dai arai a tengman ai tsaw dik htum hte npu htum ai shara ni hta chyam dinglik ai lam ni. |
| Matut manoi galaw shapraw ai lam | Stable jetting, spare-part nga ai, bai gram lajang mai ai, daw jau ai lam hta mahtai jaw ai, hte tau hkrau chye lu ai gram lajang ai lam ni. | Kalang sha madun dan ai laika shapraw ai hta grau nna, malai hku nna galaw shapraw ai run. |
| Hka htung, gawm, hte cylindrical zawn re ai arung arai ni | Rotary synchronization, grup yin hpe masat da ai, fixture hpe hkrak hkra galaw ai, ink hpe n-gun n rawng ai, hte htuk manu ai printhead hpe n-gun jaw ai. | Diameter, taper, arung arai, hte sumla hkrung ni hpe jai lang nna hkum tsup ai-htingnut ai sample ni hpe galaw ai. Lu ai hpe shingdaw yu ucylindrical UV laika ka ai ladat ni. |
Tatut galaw mai ai kasi -Chyam dinglik ai ladat
Printer lahkawng hpe shingdaw ai shaloi, test file hte material langai sha lang u. N bung ai sumla hkrung, pass jahpan, ink layer ni hte galaw shapraw ai sample ni hpe hkum shingdaw.
1. Shawng nnan na Nozzle hpe jep yu ai hpe ka matsing da u .
Nozzle-status sumla hpe n shapraw shi yang, asan sha tawn da u. Supplier wa gaw san seng ai lam (sh) hka wa ai lam n galaw shi yang, n nga mat ai nozzle ni hpe chye na ra ai.
2. Fine Text hte Line Detail hpe chyam yu u
4, 6, 8 zawn re ai size law law hta positive hte reverse text ni hpe bang nna, n-gun n rawng ai, n-gun n rawng ai, n-gun n rawng ai line ni hte rau bang u. Hkap la mai ai size hpe gaw, dai product a shingra tara hku yu ai tsan ai shara hte maren dawdan ra ai.
3. Neutral hte Color Gradient ni hpe dip shapraw u
Matut manoi ramp hte step tonal patch ni hpe lang u. Banding, akajawng sha galai shai ai lam, grain, nsam awu asin byin ai lam, highlight ni hta details sum mat ai lam ni hpe tam u.
4. Solid Color hte Hpraw ai Opacity hpe chyam yu u
Streaking, density galai shai ai lam, nozzle sum ai lam, curing n bung ai lam ni hpe madun dan na matu ngang kang ai shara kaba ni hpe bang u. Nsin sin ai (sh) asan sha re ai arung arai ni hta, hpraw ai opacity hte uniformity hpe jep joi yu u.
5. Hpraw- kaw nna-Nsam hte Varnish hpe masat da ai hpe jep yu u
Magnification npu hte shingra tara hku yu ai tsan ai shara kaw jut ni hpe jep yu u. Supplier ni hpe n shingdaw shi yang hkap la mai ai alignment hkam sharang lam hpe myit hkrum na; product shagu a matu mungkan ting hkam sharang ai lam n nga ai.
6. Tengman ai Print Gap hpe chyam yu u .
Product a kaba dik htum ai tengman ai tsaw ai shai hkat ai lam hpe lang u. Yak dik ai shara hta n-gun ja ai n-gup magap ni, laika kaji ni, misting, nsam ni hpe ka da ai lam ni, bai galaw mai ai lam ni hpe jep yu u.
7. Masha langai hpe dat kasa Batch hpe galaw na .
Dai hpe fixture ting hta bai galaw nna, shingra tara hku galaw ai batch hku nna bai galaw u. Awng dang ai print langai gaw, ngang grin ai lam, bai hpaw hpang ai akyang lailen, shing nrai, n galai shai ai shara hpe n madun ai.
8. Hpaga galaw ai aten hpe hkrak hkra ka matsing da u
Dip shapraw ai shara, pass jahpan, ink layers, n-gun, dip shapraw ai aten, bang ai aten, jahkrat ai aten, fixture-galai ai aten ni hpe ka matsing da u.
9. Nozzle hpe bai jep yu u .
-chyam dinglik ai shawng hte-chyam dinglik ai hpang na nozzle masa hpe shingdaw yu u. N-gun n rawng ai nozzle sum ai lam nnan hpe sawk sagawn yu u, dai hpe shingra tara hku n sawn ai sha.
10. Ra ai Adhesion Test hpe ngut kre hkra galaw u .
Adhesion gaw, printhead hta sha n-ga, n-gun rawng ai arung arai, jasan jaseng ai lam, shawng nnan galaw ai lam, ink, curing- hta grai madung nga ai. Lajang da ai hkamja lam hte hkamja lam hpe gram lajang ai aten ngut ai hpang, n-gun hpe chyam yu u. Dacen a laika hpe 2019 hta ka da ai.Hpa majaw n galaw shi yang sakse hkam ai lam hpe ngut kre hkra galaw ra aiarung arai-hpe laksan sample myit hkrum ai lam a manu hpe sang lang dan ai.
Teng Sha Printhead Manghkang Rai Ai Kun?
Laika dip shapraw ai hta n kaja ai lam law law gaw, bawnu gaw madung lam n re ai sha pyi, printhead hkrat sum ai zawn rai chye ai.
| Mu mada ai manghkang | Mai byin ai -printhead n re ai lam ni a majaw | Shawng ngut hkra jep yu ai |
|---|---|---|
| N nga mat ai (sh) kalang lang byin ai nozzle ni | Ink line kata na nbung, damper hten za ai, filter pat da ai, n grin ai negative pressure, n kaja ai cap seal, n san seng ai wiper, shing nrai, awu asin re ai ink ni lawm ai. | Hkap la da ai bai gram lajang ai ladat ngut ai hpang, ink lam, n-gun, cap station, damper, filter, nozzle ni a mahtai hpe jep yu u. |
| Ghosting (sh) lahkawng lang n-gup | Lahkawng maga hku shadawn shadang masat ai, encoder awu asin byin ai, leng shamu shamawt ai, platform shut ai, shing nrai fixture shamu shamawt ai. | Alignment chyam dinglik ai lam ni hpe galaw nna, encoder strip hpe jasan jaseng nna, arung arai ni hpe gara kaw tawn da ai hpe jep yu u. |
| Nbungli hte gap ai ink (sh) nbung laru | Print gap grai law ai, n shamu n shamawt ai wan n-gun, nbung lwi ai, n htap htuk ai waveform, viscosity galai shai ai, shing nrai, grai lawan ai hku htaw sa ai. | Mai byin ai shara hta gap hpe shayawm kau nna, static hpe hkang u, ink temperature hpe kam u, n-gun yawm ai hku galaw ai setting ni hpe shingdaw yu u. |
| N kaja ai adhesion | Ntsa n san seng ai, ntsa n-gun n law ai, primer n jaw ai, n hkum tsup ai curing, n htap htuk ai ink, shing nrai ink grai n-gun ja ai. | Baw langai hpe n galai shi yang, san seng ai lam, shawng nnan tsi lajang ai lam, tsi lajang ai lam, arung arai ni hte htuk manu ai lam ni hpe bai maram yu u. |
| Nsam shai hkat ai lam | ICC profile, ink batch, hpraw ai layer galai shai ai lam, n-gun rawng ai masa, bawnu hpe hkrang shapraw ai lam, shing nrai, n bung ai substrate nsam ni hpe mu lu ai. | Arung arai ni, hkrang bung sumla ni, n-gup magap, n-gun ja ai lam, hte shadawn sharam ai lam ni hpe madang masat da u. |
| Banding | Nozzle sum mat ai, pass setting galaw ai, media rawt jat wa ai, lahkawng maga de hkrang shapraw ai, mawdaw katsi ai, shing nrai n bung ai ink jaw ai lam ni. | Nozzle jep ai lam, hkrang shapraw ai lam, lai wa ai ladat ni hte platform shamu shamawt ai lam ni hpe shingdaw yu u. |
Hpaga ga ai ni a tang shawn ai lam hpe shingdaw na matu, Weighted Scorecard hpe lang u
Proposal langai hpra hpe category shagu a matu 1 kaw nna 5 du hkra masat masa jaw nna, dai masat masa hpe hpaji jaw da ai n-gun hte law htam shangun nna, yawng hpe shingdaw yu u. Na a hpaga lam hte maren, n-gun ni hpe galai shai u.
| Jep joi ai lam hpan | Hpaji jaw ai n-gun | Sakse ra ai |
|---|---|---|
| Ink hte waveform hta htuk manu ai lam | 20% | Tengman ai ink hkrang, bungli galaw ai shara, ga sadi masat masa ni, hte ngang grin ai n-gup chyam dinglik ai lam. |
| Ra ai sumla a hkam kaja lam | 15% | Kaja ai laika, gradient, ngang kang ai jahpring ai lam, hpraw ai mying jahpan, hte galaw shapraw ai-mode sample ni. |
| Hpaga galaw shapraw ai atsam | 15% | Ra ai pass count, sumla shingnip, hpraw, hte varnish ni hte shadawn ai pru wa ai lam. |
| Hpraw hte laksan-hka n-gun ngang grin ai | 15% | Circulation diagram, matut manoi-print chyam dinglik ai, bai hpaw hpang chyam dinglik ai, hte gram lajang ai ladat ni. |
| Hpaga arai geometry hte dip shapraw ai gap | 10% | Tengman ai arung arai chyam dinglik ai lam, tsaw ai jahpan, jut a hkam kaja lam, hkrat sum ai kaw na makawp maga ai lam, hte n-gun rawng ai masing. |
| Hkamja lam hte yawng manu jahpu | 15% | Baw manu, jai lang mai ai arung arai ni, bungli galaw masha ni ra ai, bungli n galaw ai aten, galai na ladat ni. |
| Spare parts hte hpaji lam hta madi shadaw ya ai | 10% | Stock masa, mahtai jaw ai aten, laika buk ni, sharin hpawng ni, tsan tsan kaw nna madi shadaw ai lam ni, hte ginra daw jau ai lam ni. |
Printhead-Supplier hpe san na matu seng ai ga san ni
- Printhead shagu a hkrak ai galaw shapraw ai model code gaw hpa rai kun?
- Head kade bang da ai, CMYK, hpraw, varnish, primer ni hpe gara hku ap da ai kun?
- Ndai bawnu hte waveform hte gara UV ink formulation hpe hkam la lu sai kun?
- Gara bungli galaw ai nbung katsi ai hte n kaja ai-n-gun n-gun hpe lang ai kun?
- Hpraw ai ink gaw gara kaw hkawm sa ai: tank, hka htung, damper, shing nrai, nozzle ni a hpang kaw?
- Ndai ndau shabra ai lawan ai lam a matu gara print mode hte ink layer ni hpe lang ai kun?
- Print gap hpe hpaji jaw da ai gaw kade rai nna, nye a product hta chyam yu ai gap kaba dik gaw kade rai na kun?
- Prinhead hpe galai kau ai hpang gara daw ni hte calibration ni ra ai kun?
- Gara printhead hkra machyi ai lam ni hpe warranty kaw n lawm ai kun?
- Supplier wa gaw nye a arung arai hte sumla hkrung ni hpe lang nna, record galaw da ai galaw shapraw ai chyam dinglik ai lam hpe ngut kre lu na kun?
UV Printhead hpe lata ai shaloi shut ai lam ni
Kaji dik htum ndau shabra ai hka htung hpe lata ai
Minimum droplet kaji langai mi gaw, hkrak ai shara, n-gun n rawng ai gradient, ngang grin ai solid coverage, hkap la mai ai galaw shapraw ai lawan ai lam ni hpe sakse n madun ai.
Print Mode hpe n jep yu ai sha, Maximum DPI hpe shingdaw ai
Address galaw mai ai resolution, native nozzle resolution, hte galaw shapraw ai-mode resolution ni gaw n bung ai ningmu ni rai nga ai. Sample hte print galaw na matu ra ai aten hpe hpyi shawn u.
CMYK, Hpraw, hte Varnish galaw ai hte Draft Speed hpe shingdaw ai
Specialty layers n lawm ai draft speed hpe -layer law law lawm ai ngut sai hte n mai shingdaw ai.
Brand langai kaw na baw shagu langai sha galaw ai ngu sawn la yang
Hpaga galaw ai ni gaw, n bung ai ntsin, hkrat sum ai shara, resolution, galu kaba ai, viscosities, hte circulation ra kadawn ai lam ni a matu n bung ai baw ni hpe jaw ma ai.
Hkum tsup ai Hpraw Ink System hpe n gawn n sawn di ai
Demonstration sample gaw, n bungli n galaw ai aten, matut manoi galaw ai, shing nrai, bai hpaw hpang ai hpang, system gara hku galaw ai hpe n tsun dan ai.
Hkamja lam hpe hkang lu ai htuk manu ai lam n lawm ai sha Ink hpe galai shai ai
Ink nnan langai hpe hka shin ra ai, waveform nnan hpe gram lajang ra ai, pressure n bung ai, nbung katsi ai hpe gram lajang ra ai, profile nnan ni ra ai, curing galai shai ra ai.
Galai shai na matu madi shadaw ai lam hpe n kam ai sha mari ai
Hpaji masa hku nna htap htuk ai bawnu gaw, galai shai na matu, shadawn shadang tawn ai arung arai ni, shing nrai, atsam rawng ai madi shadaw lam ni hpe lu la na matu yak hkak ai aten hta, galaw shapraw ai lam hta hkrit tsang hpa hpe naw shabyin ya lu ai.
Galoi mung san ai ga san ni
San: UV Printer a matu kaja dik ai Printhead gaw hpa rai ta?
A: Mungkan ting hta kaja dik ai printhead n nga ai. Teng man ai lata la ai lam gaw, ink, ra ai detail, ink shinggrup ai lam, galaw shapraw ai n-gun, product geometry, ink hpraw lang ai lam, gram lajang lu ai atsam, lu mai ai madi shadaw lam ni hta madung nga ai.
San: UV Printing galaw na matu Ricoh gaw Epson hta grau kaja ai kun?
A: Application shagu a matu brand langai mi mung shi hkrai shi grau kaja ai n re. Tengman ai model ni hte hkum tsup ai printer system ni hpe shingdaw yu u. Epson I3200-madung tawn ai hkrang shapraw ai lam ni gaw, n-gun n law ai multi-channel htingnu gawgap ai lam hte n-gun n rawng ai hka htung ni hpe hkang lu ai, lata la ai Ricoh hkrang ni gaw grau dam lada ai swaths, katsi ai, magri hte galaw ai, shing nrai hkrang langai hte langai a matu bungli galaw ai atsam ni hpe jaw ya lu ai. Tengman ai prut prut hte galaw shapraw ai masa ni gaw mari na matu dawdan ra ai.
San: Kaji ai Ink Droplet ni gaw galoi mung grau kaja ai kun?
A: N rai, kaji ai hka htung ni gaw, hkrak ai lam ni hpe madi shadaw ya lu nna, nsam kaba ai hka htung ni gaw, n-gun ja ai hka htung ni, hpraw ai ink, varnish, texture ni a matu akyu rawng na re. Laksan shara jahkrat ai lam, grayscale hpe hkang ai lam, pass jahpan, jep joi ai lam, substrate a akyang lailen ni mung ahkyak nga ai.
San: UV Printer Printhead gaw kade daram na hkra lang mai ai kun?
A: Kam mai ai mungkan ting na asak hkrung lam n nga ai. Ink hte htuk manu ai lam, gram lajang ai lam, bungli galaw ai shara, laika ka ai nsen, bawnu hkra ai lam, n shamu n shamawt ai wan n-gun, bungli n galaw ai aten, UV n-gun n rawng ai lam, bungli galaw ai wa a lai ladat ni yawng gaw, magam bungli prat hpe hkra machyi shangun ai.
San: Hpa majaw Hpraw Ink Hkrun Lam Ahkyak Ai Kun?
A: Hpraw ai ink hta n-gun ja ai pigment lawm nna, dai gaw n-gun rawng ai. Tank hpe shingjawng ai, line shingjawng ai, n-gun hpe hkang ai, hte nozzle-area hpe bai shingjawng ai shara hta nga ai shara ni hta grau ngang grin ai hka masa hpe makawp maga ya lu ai. Mari ai ni gaw, dai ink gara kaw hkawm sa ai hpe hkrak san ra ai.
San: Masum ngu na-UV Ink gaw Printhead hpe hkra machyi shangun lu ai kun?
A: N-hkap la ai ink gaw n-gun n rawng ai jetting, pat da ai filter ni, seal n htap htuk ai, nozzle sum mat ai, n-gun n rawng ai manghkang ni, aten garai n du yang component hkrat sum mat ai lam ni hpe grau law hkra galaw ya lu ai. Hkamja lam hpe hkang lu ai galai shai ai lam hta, chemical hte htuk manu ai lam, hka lim ai lam, waveform, pressure, nbung katsi ai lam, nsam, hte hkamja lam hpe chyam dinglik ai lam ni lawm ra ai.
San: UV Printer n mari shi yang hpa hpe chyam yu ra ai kun?
A: Na a tengman ai arung arai hte sumla hkrung ni hpe chyam yu u. Hpa majaw nga yang, n-gun ja ai laika, gradient, nsam ngang kang ai, hpraw ai opacity, registration, ra ai rai yang varnish, n-gun grau law ai product tsaw ai shai hkat ai lam, bai galaw mai ai lam, galaw shapraw ai aten, nozzle hpe jep yu ai lam, hkrak ai hku shawng nnan tsi lajang ai hte hkam kaja hkra galaw ngut ai hpang n-gun rawng ai lam ni hpe bang da ra ai.
Hpang jahtum hpaji jaw ga
Tengman ai UV printer printhead gaw, hkum tsup ai, hkam la da ai laika shapraw ai ladat kata hta kam mai ai hku bungli galaw ai re. Brand mying, n law htum droplet size, kaba dik htum DPI, draft speed ni gaw akyu rawng ai masat da ai lam ni rai tim, application chyam dinglik ai lam hpe n mai galai shai ya ai.
Proposal hpe n hpyi shawn shi yang, ndai lam ni hpe hkyen lajang u:
- Tengman ai arung arai (sh) arung arai
- Hpaga arai shadawn shadang hte tsaw dik htum shai hkat ai lam
- Print-jin jin rai sai sumla hkrung
- Shani shagu (sh) hkying hkum shagu pru ra ai
- Ra ai nsam ni, hpraw, varnish, shing nrai primer
- Myit mada ai quality hte yu na tsan ai shara
- Lu mai ai gram lajang ai lam hte hpaji masa lam ni
Sample a matu lang ai printhead, channel hpe ap ya ai, ink, pass count, print gap, galaw ai aten, nozzle a masa, gram lajang ai ladat ni hpe hkrak hkrak ka da na matu, supplier hpe tsun dan ra ai.
Product- langai hte seng ai print chyam dinglik ai lam hpe lajang na matu (sh) htap htuk ai printhead hkrang hpe bawngban na matu,Dacen laika ka ai wa hpe matut mahkai una a arung arai, shadawn shadang, sumla hkrung, ra ai shapraw ai lam, ra sharawng ai ink configuration ni hte rau.
